Knowing Checksum Correction and Why It’s Important for Secure Tuning

A checksum: what is it? The Internal Integrity Check of the ECU

A checksum is a tiny, fixed-size number that is computed from a bigger block of data in the context of digital data. It functions as a basic error-checking tool, intended to confirm the data’s integrity.

The process that produces this result is called a checksum algorithm. If just one bit of the input data is altered, a well-designed algorithm will provide a substantially different checksum.

The software or “map” that governs the engine’s operations is kept in the memory of a car’s Engine Control Unit (ECU) as a block of digital data. Before starting the engine, the ECU performs a self-check, recalculating the checksum from the data currently in its memory and comparing it to the original checksum value stored within the file.

If the two values match, the ECU verifies that its software is intact and uncorrupted and permits the engine to start. The ECU contains one or more checksums that have been calculated based on this original, factory-programmed data. This procedure is an essential defense against data corruption, which can cause unpredictable engine performance or failure.

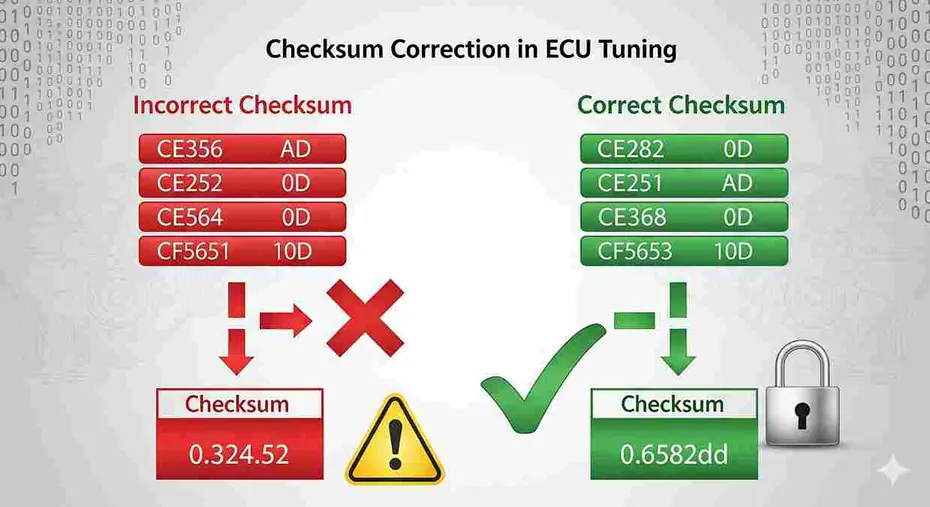

The Need for Checksum Correction in ECU Tuning

ECU tuning is purposefully changing the information stored in the ECU’s memory. The content of the data block is altered when a tuner makes changes to the fuel, ignition, or boost maps.

As a consequence, the checksum value would no longer match the original, factory-stored value if the ECU recalculated it using the updated data.

Checksum correction is an essential part of the tuning process because of this discrepancy. The process of recalculating a new checksum based on the updated data and then updating the checksum value stored in the file to this new result is known as checksum correction.

By doing this, the tuner makes sure that the newly calculated checksum will match the newly stored checksum when the ECU performs its integrity check at the next startup, allowing the ECU to accept the modified software as legitimate and authentic.

The Repercussions of an Inaccurate or Negligent Checksum

There will be serious repercussions if you edit an ECU file without first correcting the checksum. Because the calculated checksum of the updated data will not match the old, uncorrected checksum value still stored in the file, the ECU’s self-check will fail when it is powered on.

The ECU interprets this discrepancy as an indication of corrupted or invalid software and will start a protective action to prevent potential engine damage. The most frequent results of an incorrect checksum are:

No-Start Condition:

Generally speaking, the car will just not start again. When the ECU detects corrupted software, it will prevent the engine from starting or firing up.53

Limp Mode:

Although the engine may be able to operate, the ECU will put it in a very limited “limp mode,” with much less power and functionality.54

Bricking the ECU:

In the worst situation, especially when writing (flashing), an incorrect checksum can result in a failed write operation that corrupts the ECU’s bootloader, leaving the unit “bricked” and completely unresponsive.57 If recovery is possible at all, it frequently takes specialized tools and knowledge.

Triggering Fault Codes:

P0605 (Internal Control Module Read Only Memory (ROM) Error) is one of the Diagnostic Trouble Codes (DTCs) that the ECU will record in relation to internal control module memory errors.

How Checksum Correction Is Handled by Contemporary Tuning Tools

Fortunately, the development of professional tuning software has largely automated this crucial phase. In the early days of ECU tuning, the tuner had to manually compute and adjust checksums, which was a difficult and error-prone operation.

Automated Correction by Flashing Tools: The majority of well-made, contemporary flashing tools (like KESS3, Autotune, and Flex) come with built-in algorithms that automatically compute and correct the checksum while writing.53 The software of the tool examines the altered file, recalculates the required checksums, and embeds them into the file prior to flashing it to the ECU. The safety and dependability of tuning are significantly improved by this smooth, background procedure.

Correction within Editing Software: Before the file is even sent to the flashing tool, some sophisticated ECU editing programs, such as WinOLS and ECM Titanium, also have built-in features or plugins that can detect and fix checksums within the program.58 This enables the tuner to confirm the integrity of the checksum prior to the last writing step.

It is still the tuner’s obligation to utilize genuine, high-quality tools that are known to handle checksums appropriately for the particular ECU they are working on, even if automation has made the procedure considerably safer. One of the main reasons for unsuccessful flashes and damaged ECUs is the use of cloned or inferior tools with faulty checksum algorithms.
